Thursday, September 29, 2011

Continue Moving

After the last photography shoot and working over the weekend at the part-time, I actually took a day easy. Ha. Did some domestic cleaning which felt good, and started on some shop cleaning. I still haven't cleared out as much as I would like but I need some more nice nights for scrap wood fires heh.
I finally got around to quickly making an abrasive "storage unit". Certainly not fancy but it does the trick.
Also I'm attempting to re-purpose a "parts bin" I had from long ago, now for screws and such. Haven't been able to tidy my shop shelves O'stuff really cleanly hmmm.

Thought I might make some coasters for the desk and such. For the moment this is what my years of training and dedication culminate to ha.

And already getting into the next project it seems. I was wanting to start off at "the drawing board" but felt I was working with too many variables. That the brain power and time spent drawing would be a waste without some important basic information.
Information such as geometry. Heights, depths, angles and so forth. In dealing with seating the basics aren't as open as say a cabinet might be.
Threw together this "mock-up" able to change all that and started test sitting. Went to the foam supply store to get an idea what to expect with cushions and tried to work that into the mock-up.

Got the geometry approved and it's back to the drawing board, or bench.
Next is making a full scale drawing marking the critical dimensions and making some cut-outs of legs and such to fiddle around with over the main geometry.
In addition I'm needing to do some research for knock-down fasteners. I haven't started looking yet but if anyone has a/some decent sources it would be great to be pointed in a good direction!

Thursday, September 22, 2011

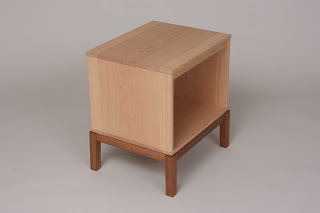

Nightstands - Complete!

Nightstands - I haven't come up with an "official" name for these guys. I'm thinking I want to give the "style" a name because I think this general form could be adapted for other applications... say, a low bookcase/side board. Hmmm it is certainly tougher for me than building the pieces ha.
Any suggestions as to how to go about this?

22" H x 20.5" W x 16.75" D.
European Beech, Kwila, Brass (brackets).

Decided to skip the last process installment as it was pretty quick and simple/repetitious heh.

Oh boy, I'm a little tuckered.
Before seriously moving on I think I need try to clean and organize the shop and space before winter bares down on us. The next proposed project ("sofa") is going to take some decent R&D for me. I think a cleaner space will help me out. Perhaps I should get some R&R before that... doubtful heh.

Wednesday, September 14, 2011

Box Assembly, Stand Stuff

Here we are again, and as promised I'm back with the glue up.
With 14 dowels per joint and four joints per box that adds up to 112 dowels plus the two dowels per apron to side joint gives a grant total of 128 dowels!
The dowels I got this time around (same dowels I always get) are harder than they have been in the past. Hand rolling them with a file to compress them was becoming a pain in the neck, and arm.
I decided to take a piece of brass and drill a 15/64" hole in it (1/64" smaller than 1/4") then tap/hammer the dowels through. Turns out it's a sloppy fit.
Well today I happened to need to go to the tooling shop to pick up another end mill bit. I bought an alphabetic "C" and "D" sized twist bits that are both between 15/64" and 1/4"... see if one of those works out for me next time.

Whole lot of clamping going on.

While glue-ups were drying I thought I'd get going on some brackets for this project. These are what I needed a new sized end mill for. I'm attaching the box portion with #6 sized screws with brackets that need to allow for movement. The 1/8" bit I have is just too small and 3/16" too big. I got a 5/32" bit. Haven't gotten back to the brackets yet though.

Onward to stand stuff!
Cut the stubby little legs to height and the aprons to length including that 2 or 3 degree angle I'm using.

Spent a little time cleaning up the end grain cuts on the aprons fine tuning that angle and making the leg end grain smooth and square.

Hadn't decided how I was going to get the slight angle in the aprons to match the legs. Decided to plane it in and use square(er) joinery. My work horse 45 degree smoother wasn't giving me the best result with the temperamental Kwila. I grabbed a higher angle smoother I made in school that I haven't used since I've been back. Quickly trued the sole, ground and honed a new edge, and gave it a test run. Seemed to be what I needed. Opened the window to the cool air set my blade for some fine shavings and got to it.
As small as this step was, the different between top and bottom edge is only 1/32", it was probably the best moments with this project thus far.
Bringing another plane into use again, making some fine shavings, freedom of shaping, sight sound and smell of the kwila, the air; it all just came together.

In short order it was back to machining. Mortising. Though with the joinery so relatively simple and square it went without much fuss.

I had decided to keep the legs square for joinery, now it's time to give it some tapering. I made a little jig to help me out. These are the first "straight" legs I've made since my first year in MCTC!? I usually can't/don't use jigs with curved legs.
The jig just cradles the leg and I cut the taper I want into the side of the jig that hits the fence. Quick and low-tech!

Ok, calling it quits on this entry here!
Maybe I can get these done in another two weeks?? hmmmm

Thursday, September 8, 2011

Doweling to Pre-finish

Alright. Once the components of the boxes were sized and all it was time for the major joinery of said boxes, doweling. As always I'm using doweling jigs. This makes an "exact" set of holes repeatable.
First I bored holes int he vertical pieces.

Then swap the jigs over to the corresponding sides for the top and bottom pieces... that is the bottom of the top and the top of the bottom ;).
Bore holes on the drill press setting the stop as to NOT bore all the way through!

Made a dry run to be sure things were working out and continued on making the aprons, doing some final reveal trimming and all the edge treatment.

Another check with it all together before pre-finishing. Box!

Then guess what? Yep, pre-finish!
Good old shellac and wax for these guys.

Be back with assembly and such, till then, later on out.
